In today’s energy-conscious world, battery backup systems have become a vital component of solar installations. These configurations don’t just store energy — they provide reliability, flexibility, and greater energy independence. But how exactly does a battery backup configuration work? Let’s break it down in a way that’s both technical and practical, showing how it transforms solar energy into a round-the-clock power solution.
1. The Core Concept: Storing Excess Solar Energy
Solar panels generate electricity during daylight hours — often more than a home or business consumes at that time. In a traditional setup without storage, any excess electricity is exported to the grid, and the household draws power from the grid at night.
In a battery-backed system, however, this excess energy is stored instead of being sent out. The stored energy can then be used later when the sun isn’t shining, such as during the evening, overnight, or on cloudy days.

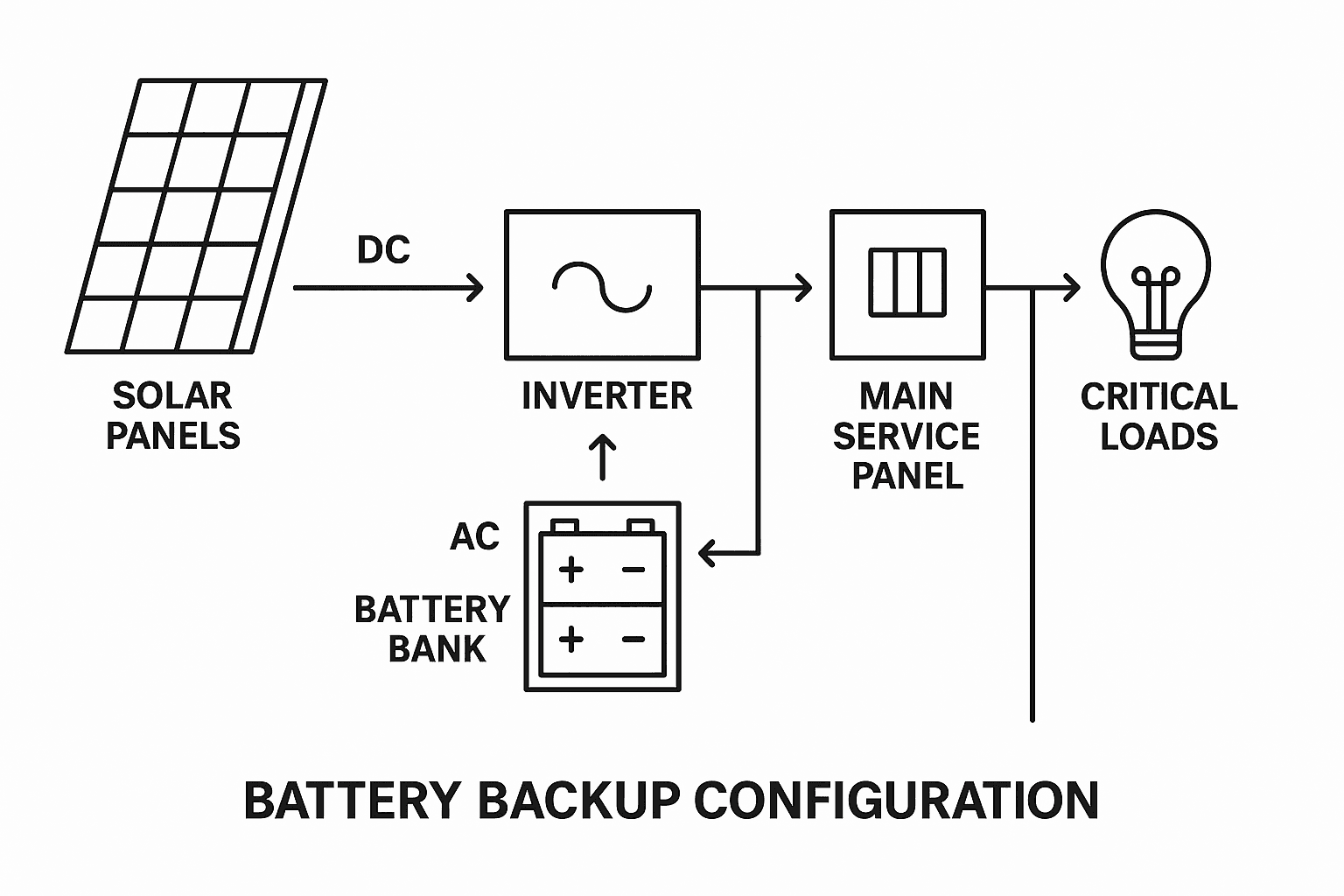

2. Key Components of a Battery Backup Configuration
A functional battery backup configuration typically includes:
- Solar Panels – To generate electricity from sunlight.
- Inverter (Hybrid or Battery-Compatible) – Converts direct current (DC) from the panels to alternating current (AC) used in homes.
- Battery Bank – Stores the excess solar energy.
- Battery Management System (BMS) – Regulates charging and discharging to maintain battery health and efficiency.
- Backup Gateway or Smart Switch – Detects grid outages and automatically switches the system to backup mode.
3. Charging and Discharging: The Energy Cycle
- Charging Mode (Daytime): During peak sun hours, the solar panels generate electricity. The system first powers the home’s immediate energy needs. Any surplus charges the batteries.
- Idle Mode (Full Battery): If the batteries are fully charged and the energy demand is low, the system can divert the remaining electricity back to the grid, potentially earning feed-in tariffs.
- Discharging Mode (Evening/Night/Blackout): When the sun goes down or during a power outage, the system draws electricity from the batteries to continue powering the home.
4. Backup in Action: What Happens During a Power Outage
When the grid fails, a well-configured battery backup system instantly isolates the property from the grid and starts drawing from the batteries to maintain power to critical loads (like lighting, refrigeration, or medical devices). This is often achieved with an automatic transfer switch or backup gateway, ensuring a seamless transition with little to no disruption.
Depending on the system design, the battery can power the entire home or only select essential circuits — a setup known as a partial backup.
5. AC-Coupled vs. DC-Coupled Systems
There are two main configurations:
- DC-Coupled Systems: More efficient for solar-to-battery charging, as the electricity doesn’t need to be converted to AC until it’s used in the home. Ideal for new installations.
- AC-Coupled Systems: Easier to retrofit with existing solar systems. The inverter handles solar-to-grid conversion and the battery uses a separate inverter to manage charging.
6. Intelligent Energy Management
Modern systems use smart inverters and apps to let users monitor usage, battery level, and solar generation in real time. They can also be programmed to:
- Reserve a portion of battery for emergencies
- Time the charging and discharging based on electricity tariffs
- Automatically recharge from the grid during off-peak hours if needed
Conclusion: A Smarter, Safer Power Supply
Battery backup configurations are more than just energy storage solutions — they’re intelligent systems designed to give users autonomy, savings, and peace of mind. Whether facing blackouts or trying to optimize energy use, a properly configured battery system ensures that clean solar energy works around the clock, not just when the sun is shining.
Here’s an example layout of a typical home solar battery backup system:
🔋 Example System Layout – Hybrid Solar + Battery Backup
- System Size: 13.2 kW Solar System
- Battery: 10.24 kWh Dyness Powerbox Pro
- Inverter: 10 kW SAJ Hybrid Inverter
- Backup Type: Partial Home Backup (Essential Circuits)
⚙️ Component Breakdown
- Solar Array:
- 30 × 440W EGing Bifacial Solar Panels (Total: 13.2 kW)
- Roof-mounted with tilt brackets for optimal angle
- Hybrid Inverter:
- SAJ Hybrid HV 10 kW, 3 Ph
- Manages solar input, battery storage, and load supply
- Battery Bank:
- Dyness Powerbox Pro 10.24 kWh
- Expandable to 49.2 kWh
- Mounted on ground, weather-protected cabinet
- Backup Load Panel:
- Connected to essential circuits only (fridge, lighting, WiFi, some power points)
- Activated automatically via built-in transfer switch in inverter or external gateway
- Grid Connection:
- Grid-tied for export/import
- Feed-in Tariff enabled for excess solar
- Monitoring System:
- Real-time tracking via mobile app
This setup allows for energy self-sufficiency during daylight, battery support after sunset, and automatic backup during outages — all controlled by a smart, streamlined system.
